Picasso – A state-of-the-art system for monitoring patients’ vital signs in Hemodynamics and Cardiac Intervention Suites, featuring the latest technology.
PICASSO SOFTWARE is a medical device software product that holds CE certification in accordance with the European Regulation on medical devices.
Main Features
Integrated FFR and dPR
Real-time FFR calculation. Beat-to-beat values over the pressure curve during hyperaemia, and dPR calculation integrated with the Opsens™ System.
Full Disclosure
Full disclosure with unlimited archiving, intuitive markers, and a user-friendly review system, enabling reanalysis of all curve types, including pullbacks.
Integrated Database
An integrated database for complete procedural documentation, fully extendable with the Odyssey Clinical Information System.
ECG Excellence, Every Time
High-quality, disposable radiotransparent leads and electrodes, designed for rapid and easy placement, ensuring a perfect, interference-free ECG at all times.
Interactive Screen

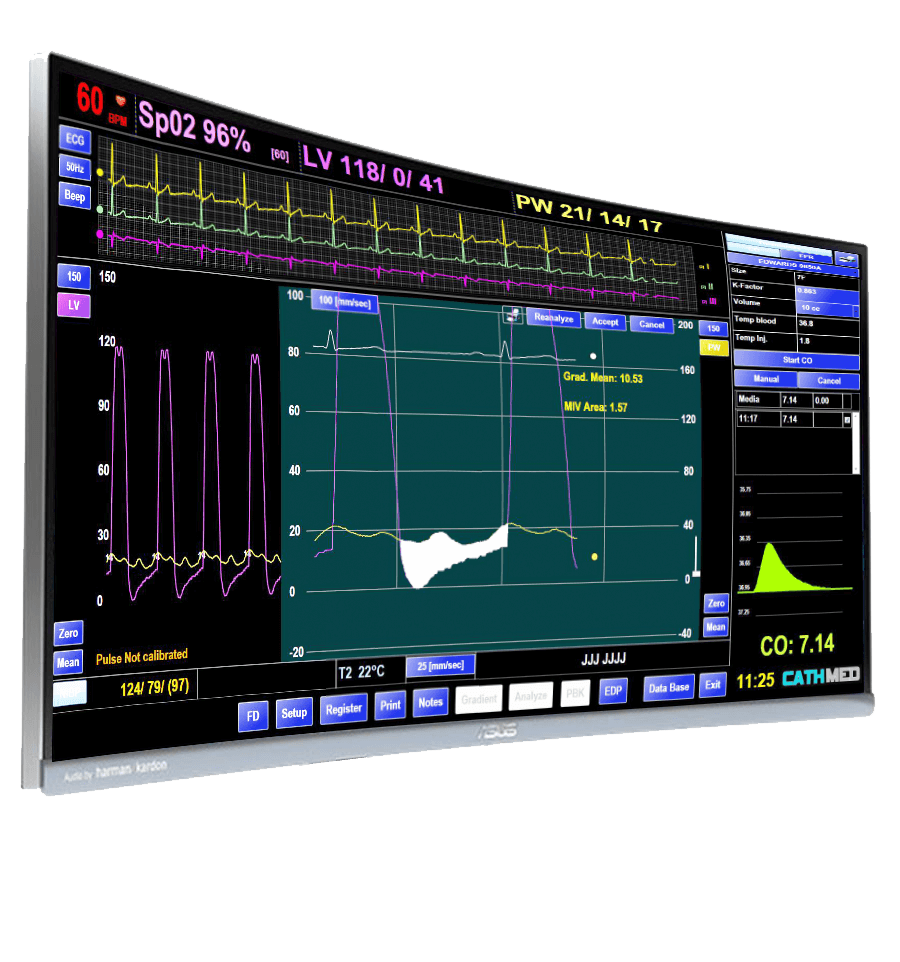

Picasso provides screen functionality, with large, user-friendly buttons and an extended on-screen curve display (14 seconds x 25 mm/s)

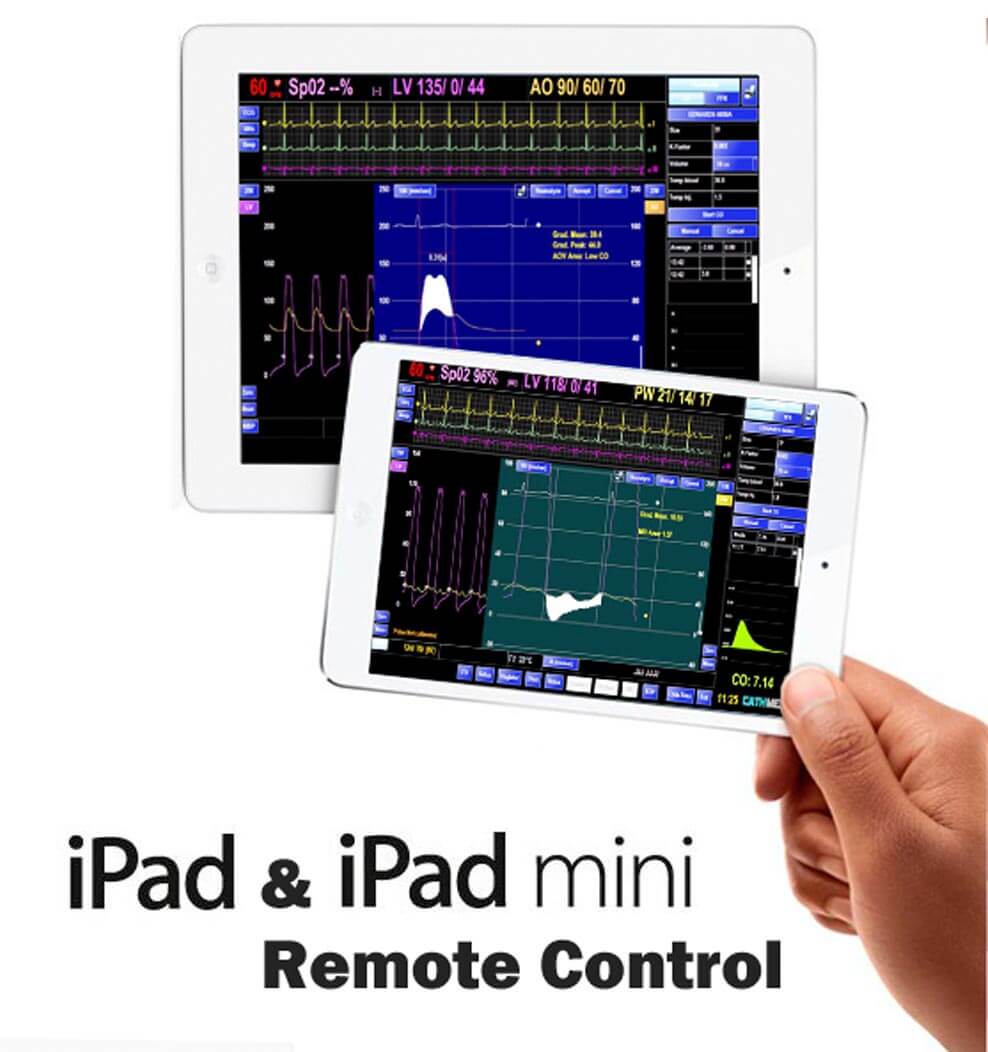

Remote Control
Control the Polygraph from inside the Interventional Suite via an iPad™.
Total Portability
Our new compact data acquisition module with TCP/IP connectivity allows connection to a laptop, providing high portability and enabling one device to serve multiple hospitals, thereby saving on investment costs.

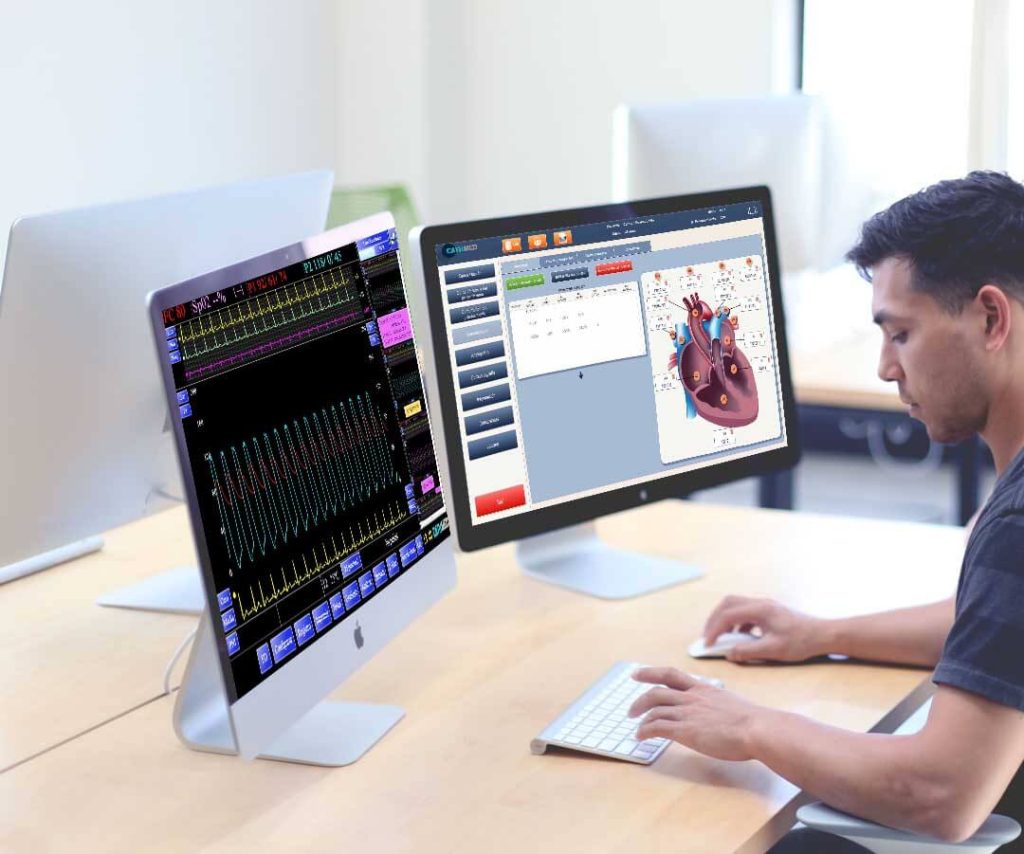

Picasso, in combination with Odyssey, delivers a complete clinical information system seamlessly integrated with the hospital HIS and cardiology department, allowing data sharing, study reanalysis, and the creation of comprehensive reports and statistics.
HL-7 y Dicom Worklist
Business Reports
Happy Customers
Main Functions
Picasso System
The Picasso System is design to fulfil the needs of modern cardiac interventional labs and complex valvular procedures.
Developed with cutting-edge technology, Picasso is intuitive, user-friendly, and requires minimal training, as it operates without drop-down menus.
Patient Monitoring

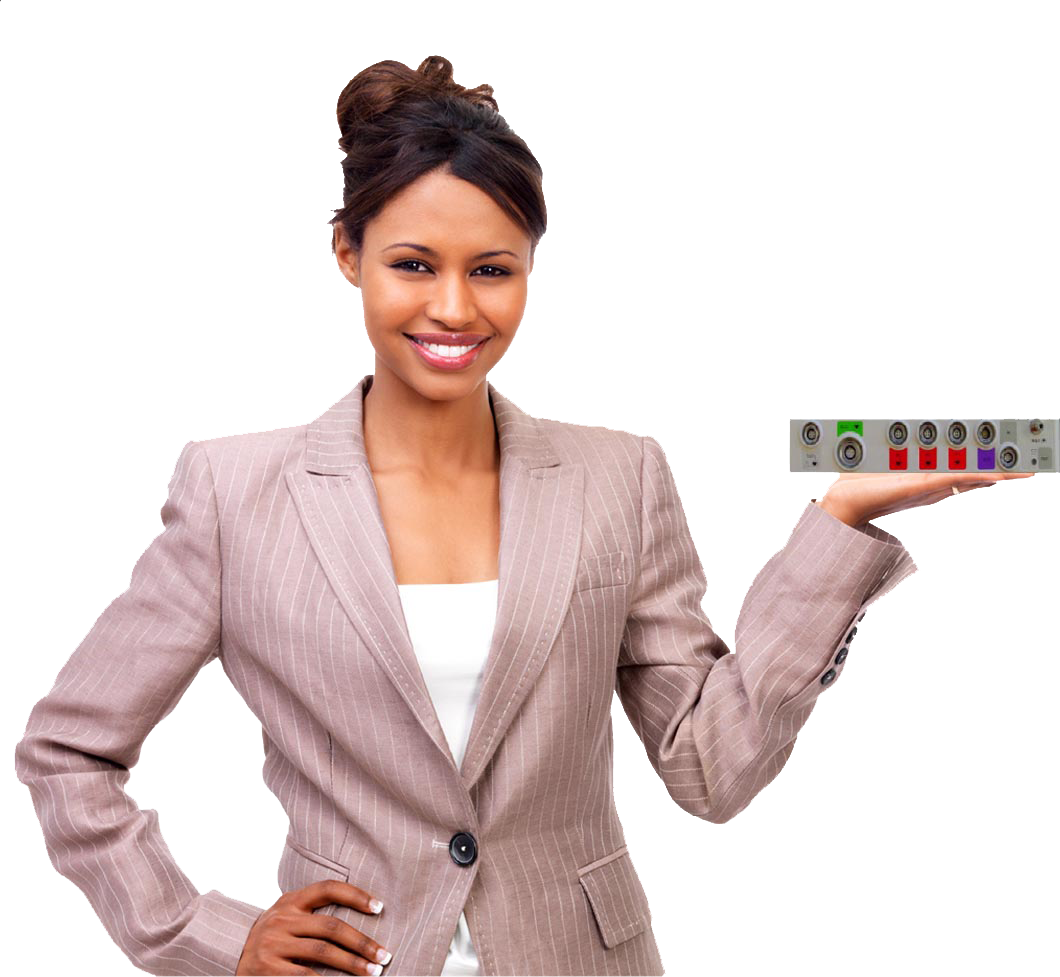

Compact data acquisition module (20 x 12 x 4 cm). High-quality, disposable radiotransparent leads and electrodes, quick and easy to place, ensuring perfect, interference-free ECG at all times.

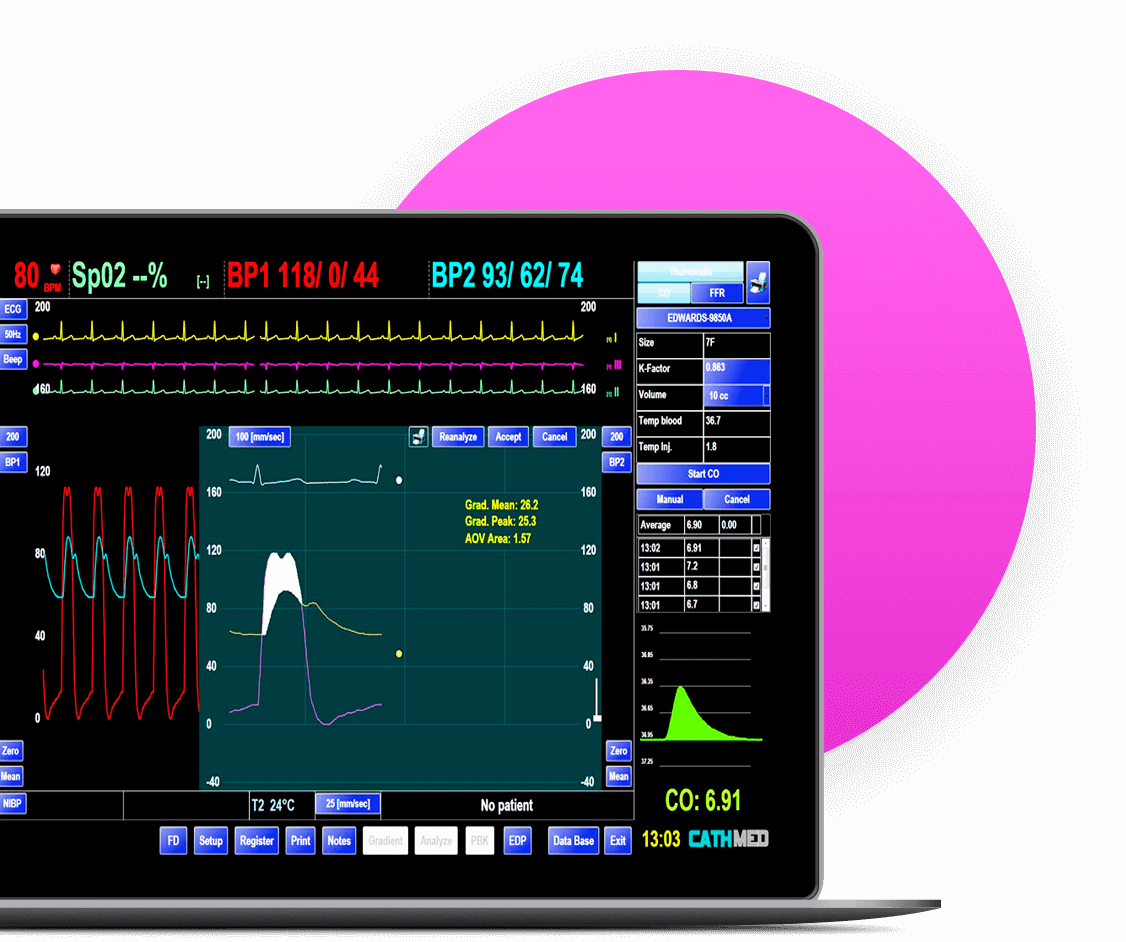

Analysis of pressures, gradients, and valvular areas. Cardiac output measurement by thermodilution. Immediate analysis of pressures and pull-backs. Post-analysis curve adjustment, cursors for editing and reanalysis. Full disclosure with unlimited archiving capacity, markers, and a simple review method.
The system has been developed with the latest technology available on the market. Picasso is intuitive, user-friendly, and requires minimal training, as it operates without drop-down menus.
DataBase

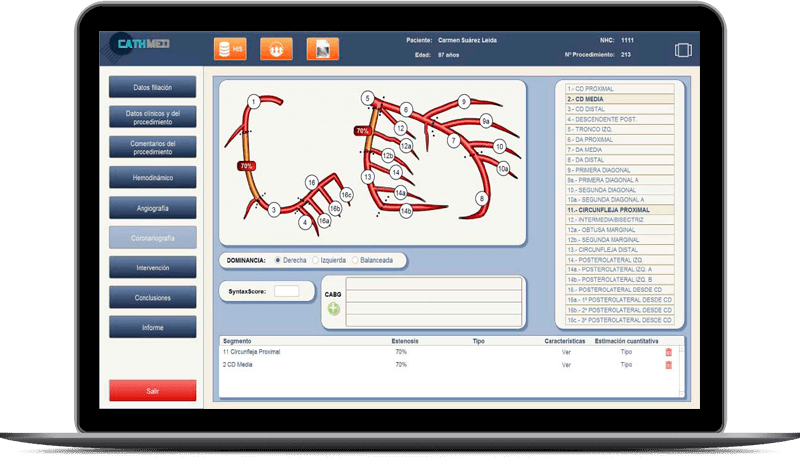

The Picasso System database is a sophisticated data management platform that captures and stores clinical patient information during catheterisation, enabling easy editing and in-depth analysis afterwards.
With a comprehensive suite of tools—including coronary data, notes packages, and more—combined with specialist conclusions and recommendations, the system streamlines case creation and documentation, generating a complete, professional final report.
Real-time FFR and dPR Calculation
Beat-to-beat real-time values along the pressure curve during hyperaemia. Automatic navigation to the curve archive allows verification of the optimal FFR point, as well as dPR calculation, fully integrated with the Opsens™ system.
Interconnection / Connectivity
Picasso offers optional HL-7 and DICOM Worklist connectivity, enabling integration with hospital systems and a wide range of medical devices for efficient data exchange.
Technical Specifications
Platform
Workstation Computer Intel™ i7 –16GB RAM, dual 2TB HDD
Screens
1 × 23” monitor in the examination room with 1920 × 1080 resolution, adaptable to X-ray equipment.
2 × 23” monitors in the control room with 1920 × 1080 resolution (optional touch screen)
Printer
HP™ high-resolution laser printer, ideal for printing curves and clinical reports.
Software
Microsoft Windows™ 10 or higher, Version PRO
Microsoft C#™
Microsoft .Net™
Microsoft WPF™ graphics subsystem
Integrated database powered by Microsoft SQL Server™
Picasso software with comprehensive haemodynamic analysis
Basic Odyssey clinical software
Networking
Supports TCP/IP networking
Signal Acquisition
12 ECG channels, all leads
4 invasive pressures
SpO₂ with curve display
Non-invasive pressure
Respiration with curve display
Temperature
Cardiac output by thermodilution (and Fick method)
FFR pressure guide interface
2 analogue outputs
Interfaces
- Interface DICOM (Optional Feature)
- Interface HL-7 (Optional Feature)
Trusted By Top Companies
Regulatory Information
Product Identification
Trade Name: PICASSO
Type: Medical Device Software (MDSW)
Class: IIb (Rule 11 MDR)
Current Certified Version: vX.X.X
Intended Purpose
PICASSO is designed for real-time monitoring and supervision of cardiac signals and related physiological parameters during clinical procedures in catheterization labs.
Intended Use Environment
Applicable in hospitals and Interventional Cardiology/CathLab departments, for adult and pediatric catheterization procedures.
It is intended to be used by physicians, especially cardiologists and interventional cardiologists, as well as by healthcare professionals with appropriate training in cardiology
Intended Installation Environment
Intended for installation on a dedicated computer in a controlled healthcare setting.
Instructions for Use (IFU)
Access to electronic or paper IFU, including previous versions, upon request through the relevant form.
