Let's TAVI !!!
TAVI
MERIL MYVAL ™
Meril is a company that develops, manufactures, and distributes clinically relevant, cutting-edge, best-in-class products to alleviate human suffering and improve quality of life.
Cathmedical is an authorized distributor of Myval™ in Spain
- CREATING NEW IDEAS -
- SOLVING BIG PROBLEMS -
Common Features
Hybrid Honeycomb Cells
Open cells in the upper half to ensure coronary ostium access.
Closed cells in the lower half for high radial strength.
Structure Construction
Cobalt Alloy Structure for High Radial Strength and RO
Pericardium
Three-Leaflet Bovine Pericardial Valve
Inner Coating
Sealed PET Inner Coating for a Lower Profile and Puncture Resistance
Outer Coating
PET Outer Coating to Minimize Paravalvular Leaks
Available Sizes
Wide Range of Sizes Ø – 20 mm, 23 mm, 26 mm, 29 mm 21.5 mm 24.5 mm 27.5 mm 30.5 mm 32 mm XL
Direct Crimping
Direct crimping on balloon. No pusher
14 Fr Phyton Introducer
One size fits all
Posibility to retrieve the valve
Important in cases:
- If you cannot cross th-e valve
- Inappropiate sizing
- Problems with th valve after it has left the sheath

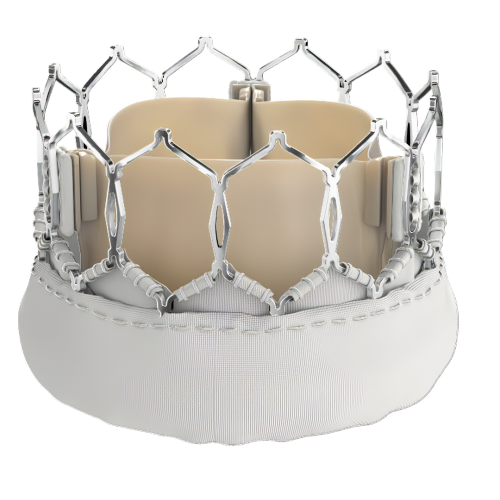

MyVal™ Octacor – Balloon-Expandable TAVI System with Innovative Design Philosophy
Same features, but…
Here you can see the key new differences between MyVal and MyVal Octacor.
Octagonal Cells
Two identical octagonal rows to ensure uniform expansion and guarantee stability during deployment. Less valve shortening = Greater stability.
Marker
Specific positioning marker ensures a more precise implantation.
More rigid distal segment
Improved pushability without compromising catheter flexibility
Dual PET skirt
This design helps reduce paravalvular leakage (PVL) to a minimum.
OctaAlign Technique
Includes the Commissural Alignment technique with RO markers on the valve commissures to ensure proper alignment.

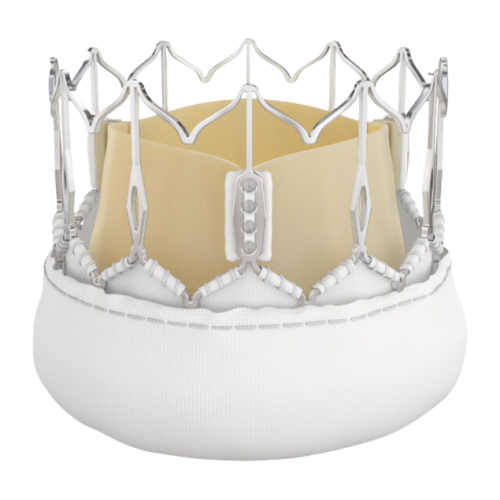

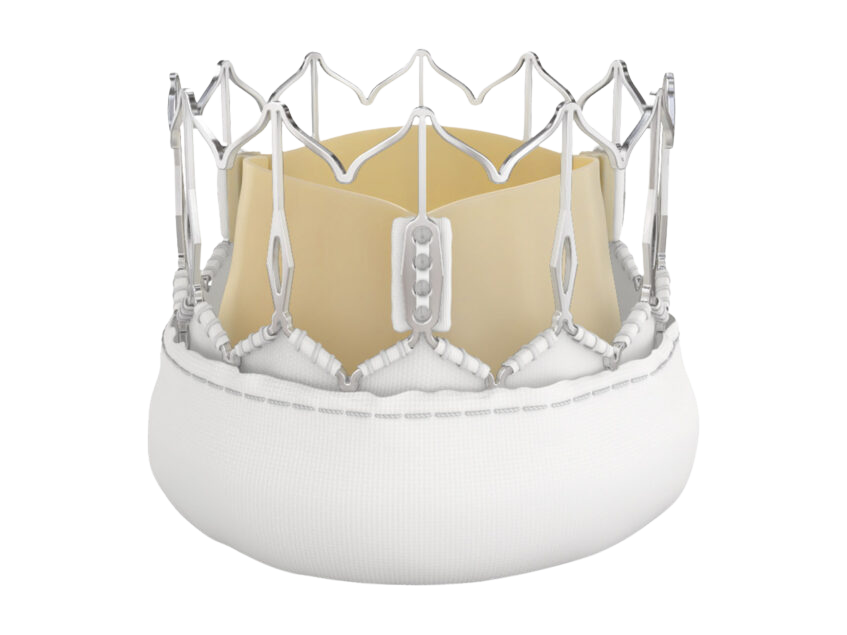

MyVal™ Octapro – Balloon-Expandable TAVI System with Innovative Design Philosophy
50% Open-Cell Design
Designed to prevent coronary obstruction and ensure re-accessibility if required
50% Closed-Cell Design
Designed to prevent aortic regurgitation.
Rhomboid structural reinforcements
Located at the stent intersections, these reinforcements enhance stability and increase radial strength.
PET Skirt
Internal: Designed to prevent aortic regurgitation and enhance fatigue resistance.
External: Minimizes paravalvular leakage (PVL).
Asymmetric Octagons
Asymmetrical octagon geometry minimizes shortening after implantation, making it safer and more stable.
Anti-Calcification
Anti-calcification treatment applied to the valve leaflets.
MyVal™ - Accesories

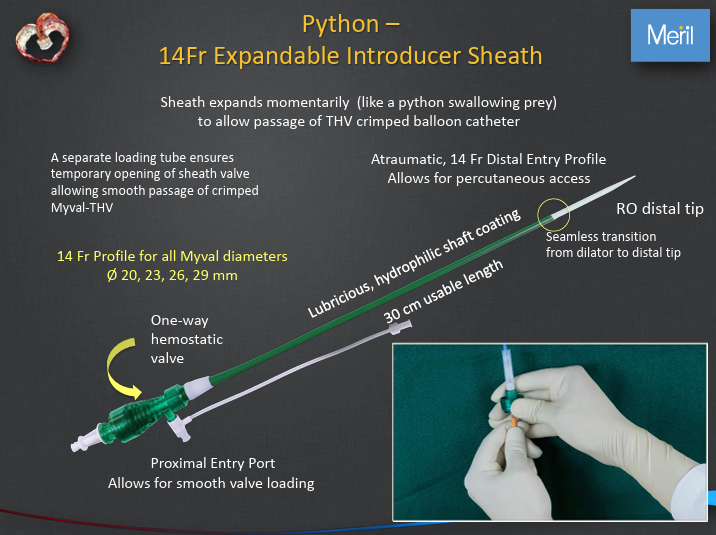

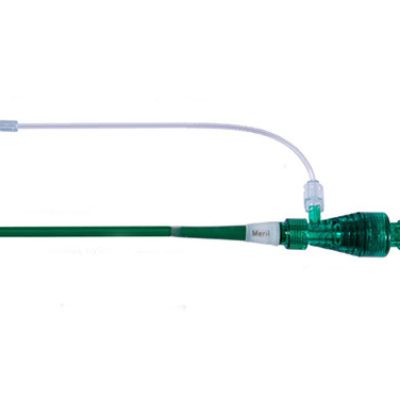

Phyton™
Expandable introducer sheath Python-14Fr
The sheath temporarily expands to allow the passage of the crimped Myval balloon catheter.
Two calibrated and independently aligned loading tubes ensure controlled, temporary opening of the haemostatic valves at the proximal hub, enabling smooth, atraumatic advancement of the crimped Myval Transcatheter Heart Valve (THV) system.

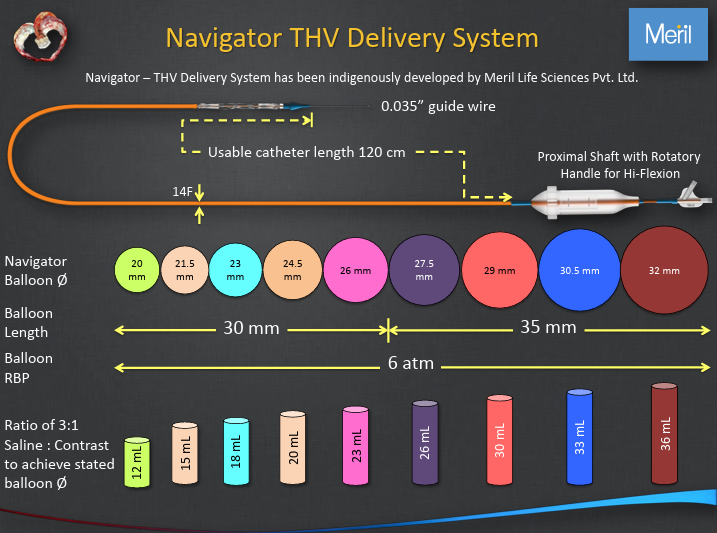

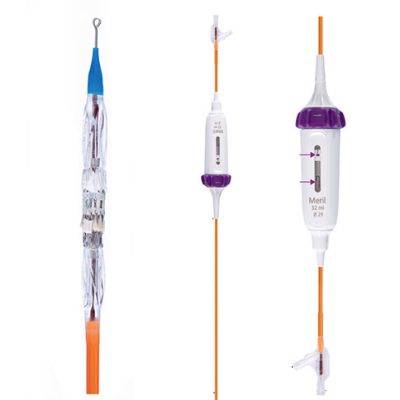

Navigator™
Navigator THV Delivery System
The Navigator delivery system incorporates proximal and distal stoppers designed to ensure precise and secure valve crimping.
These stoppers prevent inadvertent valve migration and ensure there is no risk of valve displacement (embolisation) during sheath entry or while advancing the loaded delivery system through the aorta.
Direct crimping of the Myval THV onto the balloon simplifies the TAVI delivery process, provides intuitive handling, and eliminates unnecessary procedural steps.

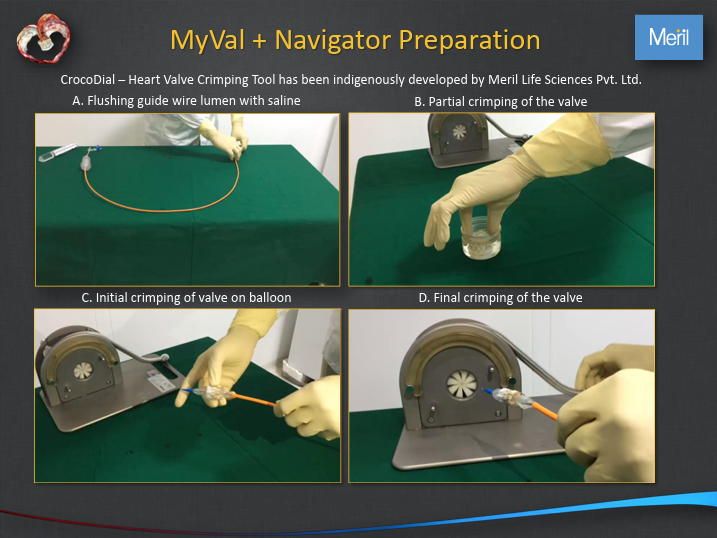

Crocodial™
The crimping device provides precise sizing and secure fixation, ensuring that the valve is firmly attached to the delivery system. This is critical for a smooth and safe TAVR procedure, as an inadequately crimped or loosely secured valve may lead to complications such as valve dislodgement during advancement through the patient’s vasculature.

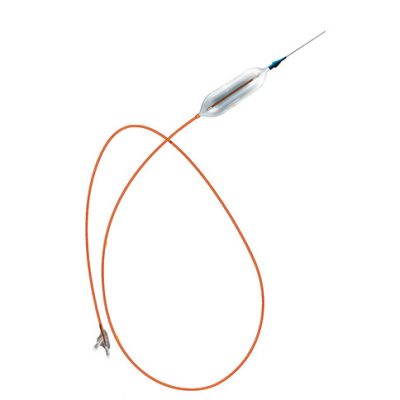

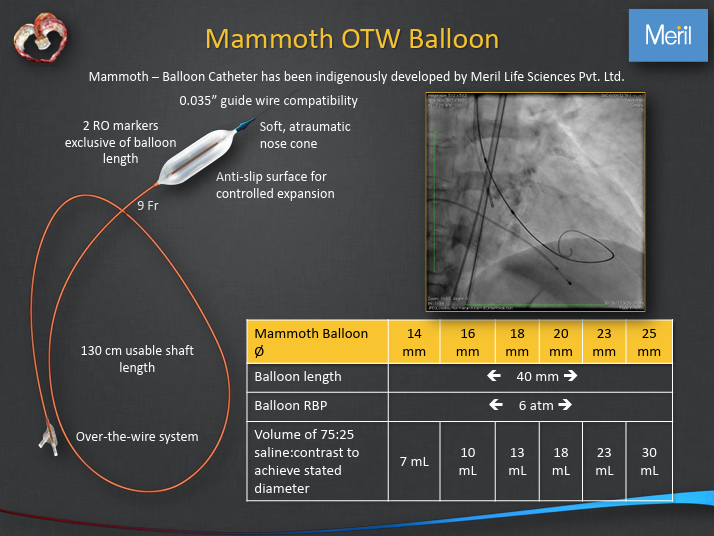

Mammoth™
OTW Balloon Catheter
Pre-dilatation is performed at the operator’s discretion and is not mandatory.
